Product details
1. Customized IP68 waterproof nickel plated brass design, good anti-corrosion.
2. Integrated bead lens with uniform lighting, no dazzling,light transmittance ＞85%
3. Ground led light is IP68 structure waterproof, can long time use under water.
4. IK10 8mm transparent tempered glass, light transmittance ＞90%, no effect with the LED color temperature

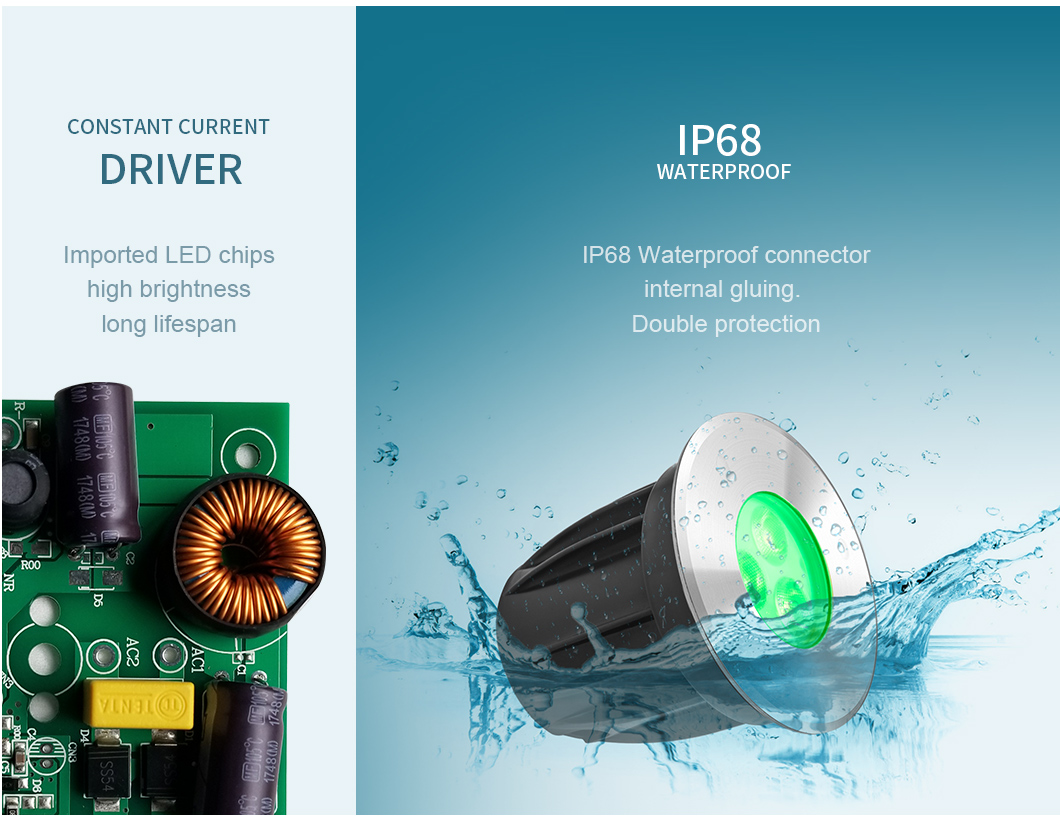

5. Constant current power driver, EMC anti-interference circuit. efficiency ＞90%, make sure the LED is constant current working, the input voltage change no effect with the LED lifespan.

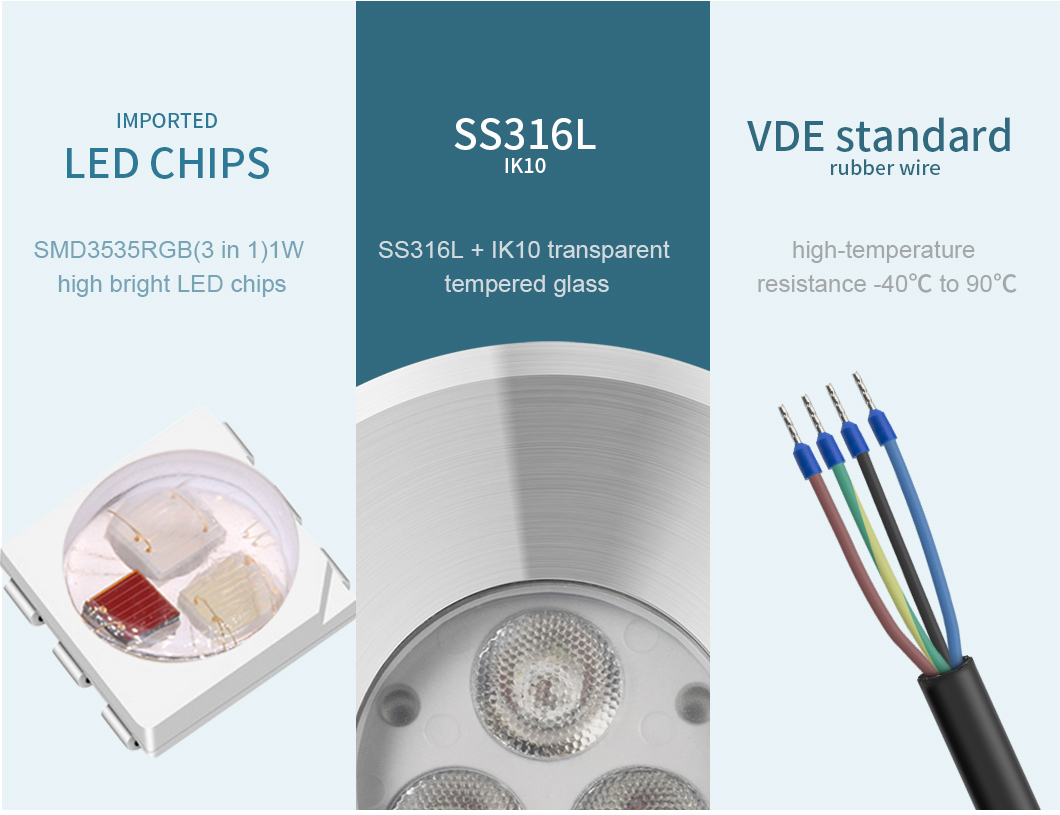

6. CREE LED chips, RA ≥80, gold wire welding, EMC and ceramic make the heat dissipation faster,assure the longer lifespan of LED.
Specification
| HG-UL-3W-SMD-G-RGB-X |
| Lamp parameter | Material | SS316L body+tempered glass cover+VDE rubber cable |
| length | Φ98×88mm |
| Input voltage | DC24V |
| Constant Driver | yes |
| Over-current Protection | yes |
| Wattage | 3W±1W Epistar |
| Light lumen | 90LM±10％ |
| Beam angle | 15°/30°/45°/60° |
| Color: | RGB(DMX512/External /Wifi control) |
| Specifics | Operating Temperature (℃) | -20~40℃ |
| IP Rating | IP68 |
| Certificate | CE, RoHS,FCC,IP68,IK10 |
| Life-span | 50,000 hours |
| Warranty | 2Years |

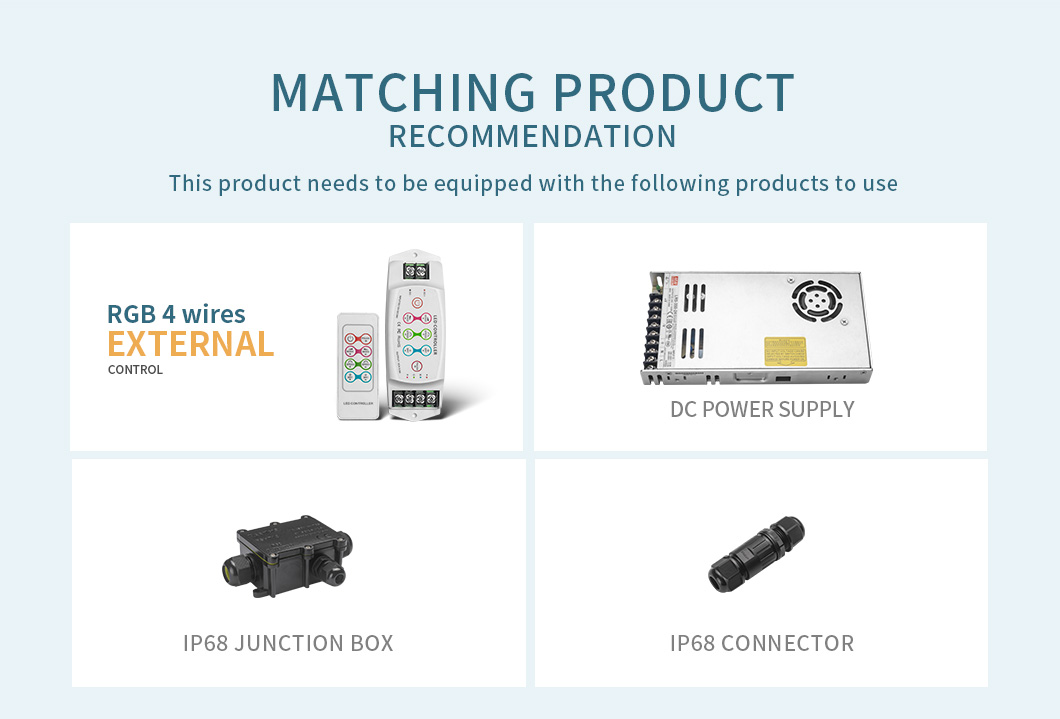

| RGB Controller | LED Ground lights | 1.DMX512 (can get the RGB color changing synchronous) 5 wires |
| 2, external controller (can get the RGB color changing synchronous) 4 wires |
| 3.RGB synchronous control design,2 wires connection 4, automatic changing 2 wires |
| Test position | LED Grond light (Min) |
| Working temperature 28℃ | Working temperature 40℃ |
| land test(Min) | 480 | 480 |
| LED edge temperature(℃) | 60 | 72 |
Contact details:
Alan
Sales Representitive
Mobile:008613652382231
Web: https://www.led-poollight.com/
In 2006, we began working on LED Underwater product development and production. factoryarea of 2,000
square meters, we are a high-tech enterprise also the only one China supplier who islisted in the UL
certificate in Led Swimming pool light industry.
LED Ground light all passed 30 steps quality control, 100% waterproof at 10m depth,8 hours LED aging test,100% inspection before deliver.
FAQ
Q1:How to choose the right LED energy saving lamps?
A:Low watage with high Lumen. This will save more electricity bill.
Q2: What is the advantages of LED?
A:Environmental friendly, Energy saving and Long lifespan.
Q3:The key factor that influence LED lifespan.
A:Temperature: It requires that junction temperature of LED chip should be ≤120ºC, so the center
temperature at the LED bottom of light board should be ≤ 80 ºC.
Q4: When can I get the price?
A: We usually quote within 24 hours after got your inquiry. If you are urgent to get the prices,
please call us directly or leave us the messge ,we will give priority to your inquiry.
Q5: May I get samples to test quality and how long can I get them?
A: Yes, samples can be ready in 3-5 days.
Q6: What is the MOQ?
A: NO MOQ,the more you order ,the cheaper price you will get .
Q7: Can you accept small trial order?
A: Yes
Q8: Do you accept the OEM&ODM?
A: Yes, OEM/ODM acceptable
